Sino Mud was founded in 1997 as a manufacturer of drilling fluids. The company was certified by Sinopec and CNPC as their official supplier in 1998 and 2004 respectively. In 2011, Sino Mud started to market and sell their products to international markets. The company has since expanded its sales network to all 6 major continents. Sino Mud’s products are lauded and recognised for their exceptional quality for all drilling industries.

Page 1 | Page 2 | Page 3

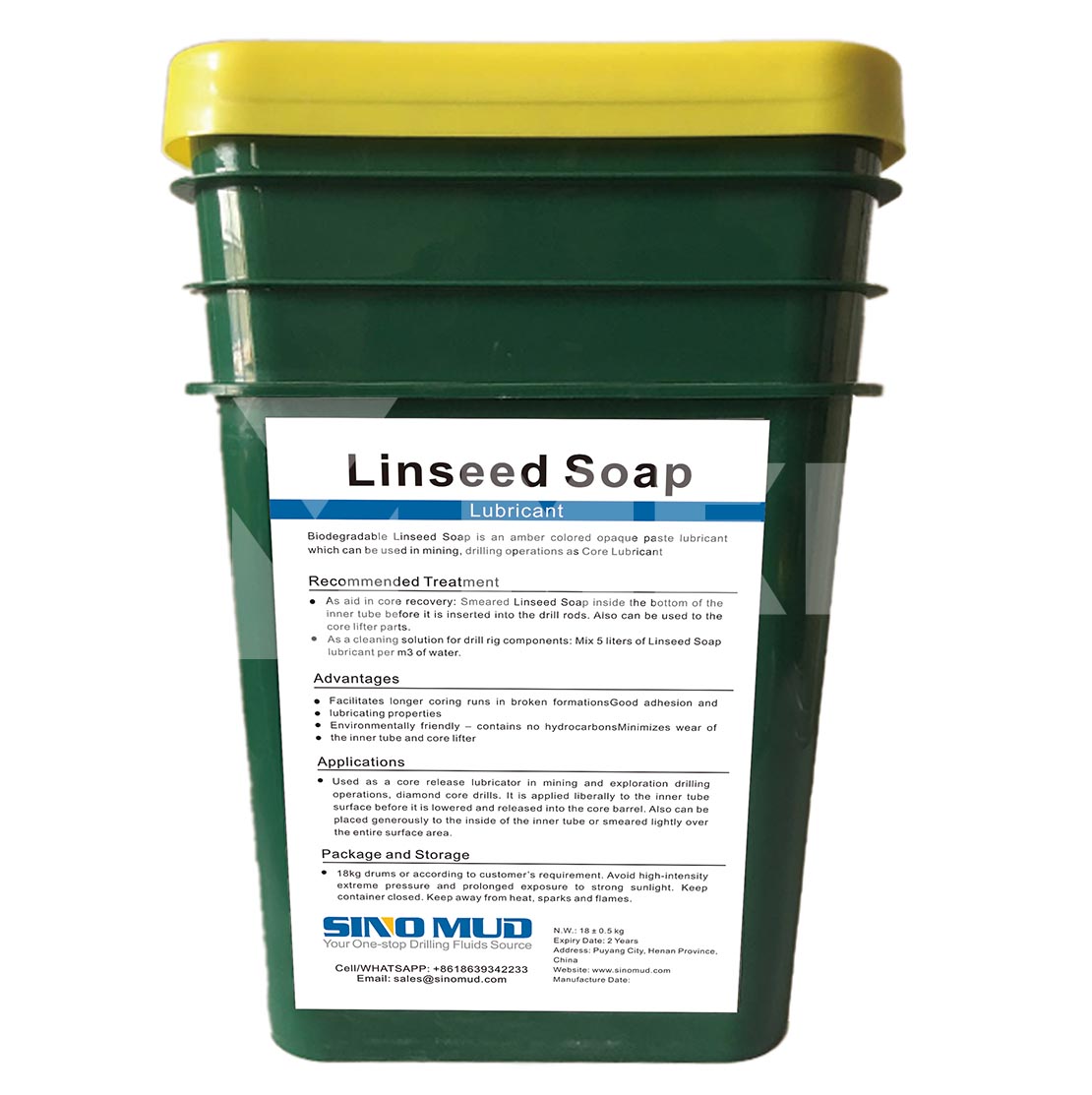

SINO MUD LINSEED SOAP (Core Barrel Lubricant)

LINSEED SOAP is an amber coloured opaque paste lubricant used as a core barrel lubricant on diamond core drills in mineral exploration drilling operations.

Application: LINSEED SOAP is widely used as a core release lubricator in mineral exploration/diamond drilling. It is developed to enable the core sample to enter and slide more easily into the inner tube thereby allowing longer runs through fractured broken formations. It also helps to minimise wear on the inner tube without staining the core samples.

images

Recommended Industries

  • Mineral Exploration/Diamond Drilling
  • Soil Investigation Drilling

    • Benefits

  • Helps extend length of core run in broken ground
  • Good adhesion and lubricating properties
  • Minimise wear and tear on the inner tube and core lifter
  • Environmental friendly

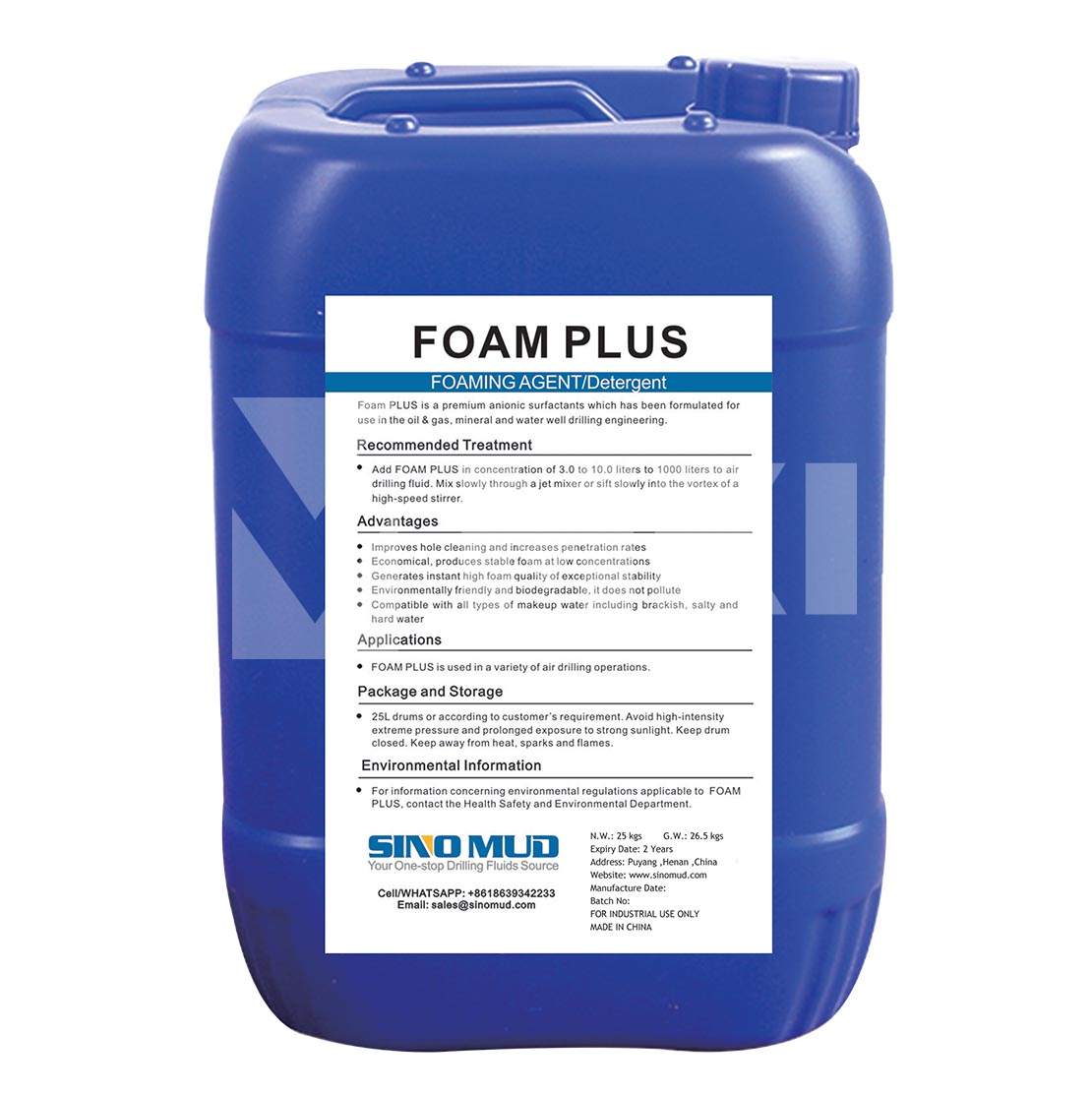

    • SINO MUD FOAM-PLUS (FOAMING AGENT)

    FOAM-PLUS is a high premium anionic surfactants.

    Application: FOAM-PLUS is specifically designed for use in the oil & gas, mineral exploration and water well drilling industries. It is used in a variety of air drilling operations where the foam can be reinforced by using SUPER POLY/CX-TROL. It helps to enhance the rate of cuttings removal, increases the ability of lifting large volumes of water, increases borehole stability and reduces the erosion of poorly consolidated formations.

    images

    Recommended Industries

  • Water Well Drilling
  • Mineral Exploration Drilling
  • Oil and Gas

    • Benefits

  • High quality foam in all water-based systems
  • Improves hole cleaning capacity of drilling fluids
  • Improves hole cleaning ability and penetration rate
  • Effective dust suppressant
  • Effective in small concentration
  • Environmental friendly

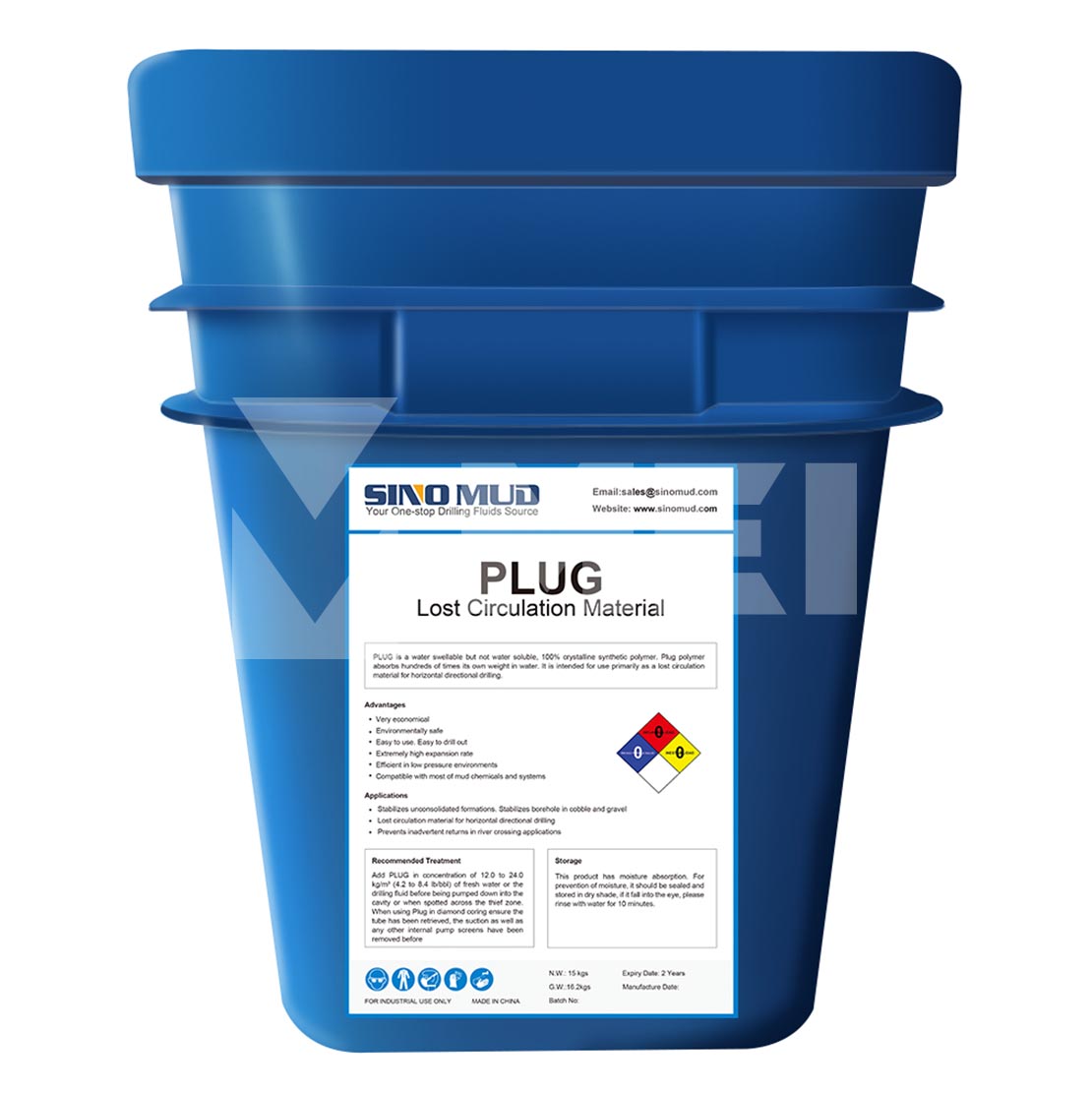

    • SINO MUD PLUG (PLUGGING AGENT-LOST CIRCULATION MATERIAL)

    PLUG is water swellable but not water soluble, 100% crystalline synthetic polymer.

    Application: SPLUG rapidly absorbs hundreds of times its own weight in water without massive expansion in volume. PLUG is primary intended for as a lost circulation material for Horizontal Directional Drilling and can be also used to reduce rod vibration in bores with lost returns. PLUG prevents inadvertent returns in river crossing drilling work and acts as a stabilizer in boreholes which have poorly consolidated formations of cobble and gravel

    images

    Recommended Industries

  • Water Well Drilling
  • Mineral Exploration Drilling
  • Oil and Gas
  • Horizontal Directional Drilling

    • Benefits

  • Easy to use
  • Very economical
  • Extremely high expansion rate
  • Efficient in low pressure environments
  • Environmentally safe
  • Compatible with most of mud chemicals and systems

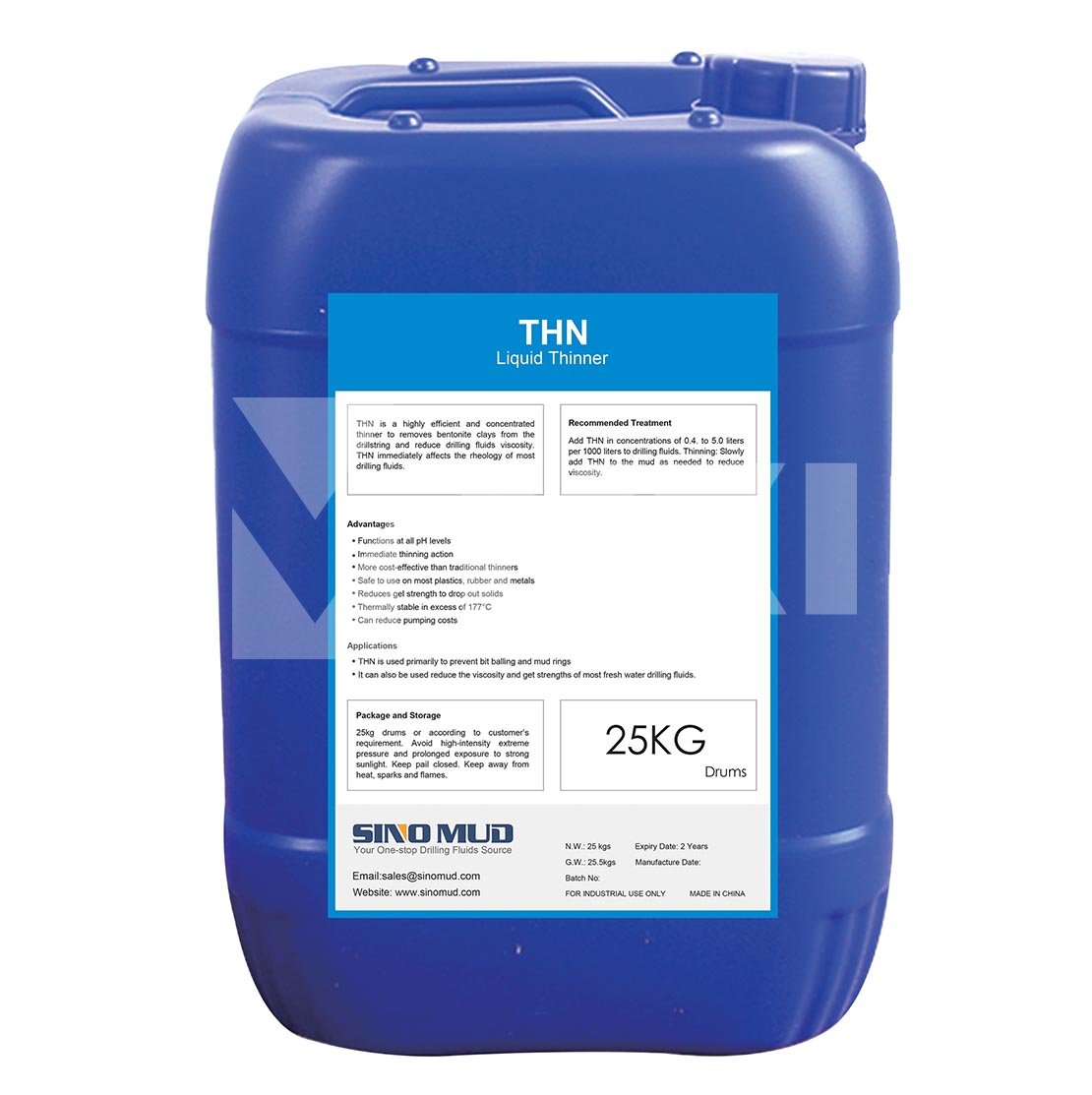

    • SINO MUD THN (LIQUID THINNER-DEFLOCCULANT)

    THN is specially formulated to act as a thinner / deflocculant in virtually all water‐base mud systems.

    Application: THN is mainly used to reduce and stabilize viscosity and assists in settling solids. THN can also be used to prevent bit balling and mud rings as it readily removes bentonite clays from the drill string and disperses the filter cake created by bentonite.

    images

    Recommended Industries

  • Construction & Civil Engineering
  • Tunnel Boring
  • Foundation Drilling/Micro Piling
  • Mineral Exploration Drilling
  • Pipe Jacking
  • Water Well Drilling
  • Horizontal Directional Drilling
  • Oil & Gas

    • Benefits

  • Functions at all pH levels
  • Immediate thinning action
  • Reduces wear and tear on drilling auxiliary tools
  • Safe to use on most plastics, rubber and metals
  • Reduces gel strength to drop out solids
  • Can reduce pumping costs

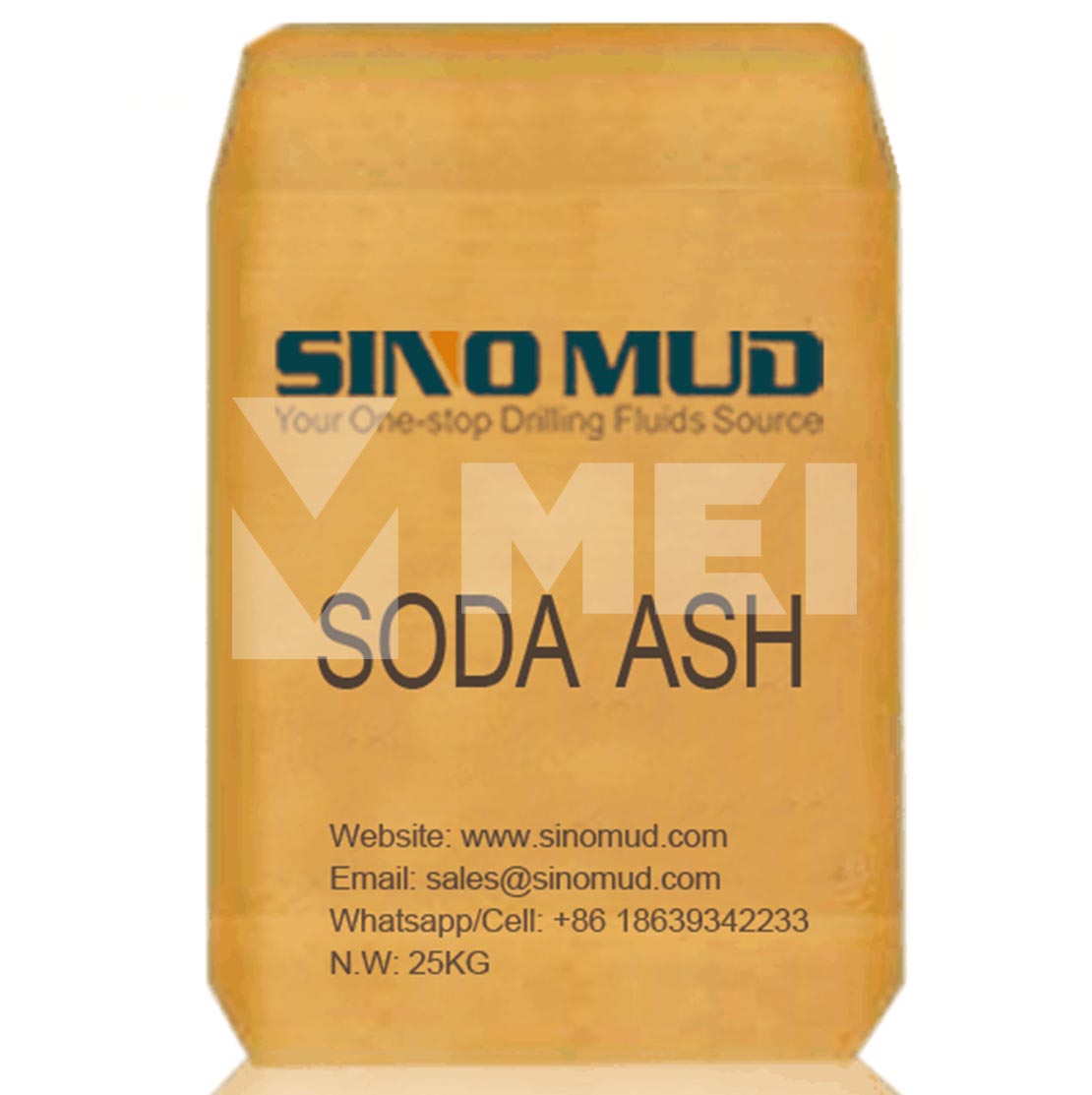

    • SINO MUD SODA ASH (pH CONTROL AGENT)

    Soda Ash (Na2CO3) is the common name for sodium carbonate which is used to precipitate soluble calcium in drilling fluids.

    Application: Soda Ash is mainly used to precipitate and remove soluble calcium from water based drilling fluids to raise pH (alkalinity) thereby increasing the performance of bentonite and polymer drilling fluids (due to lower calcium content).

    images

    Recommended Industries

  • All drilling industries working in areas of high acidity

    • Benefits

  • Widely available and economical
  • Effective in small dosage
  • Increases the performance of bentonites and polymers in acidity site conditions
    • Page 1 | Page 2 | Page 3
